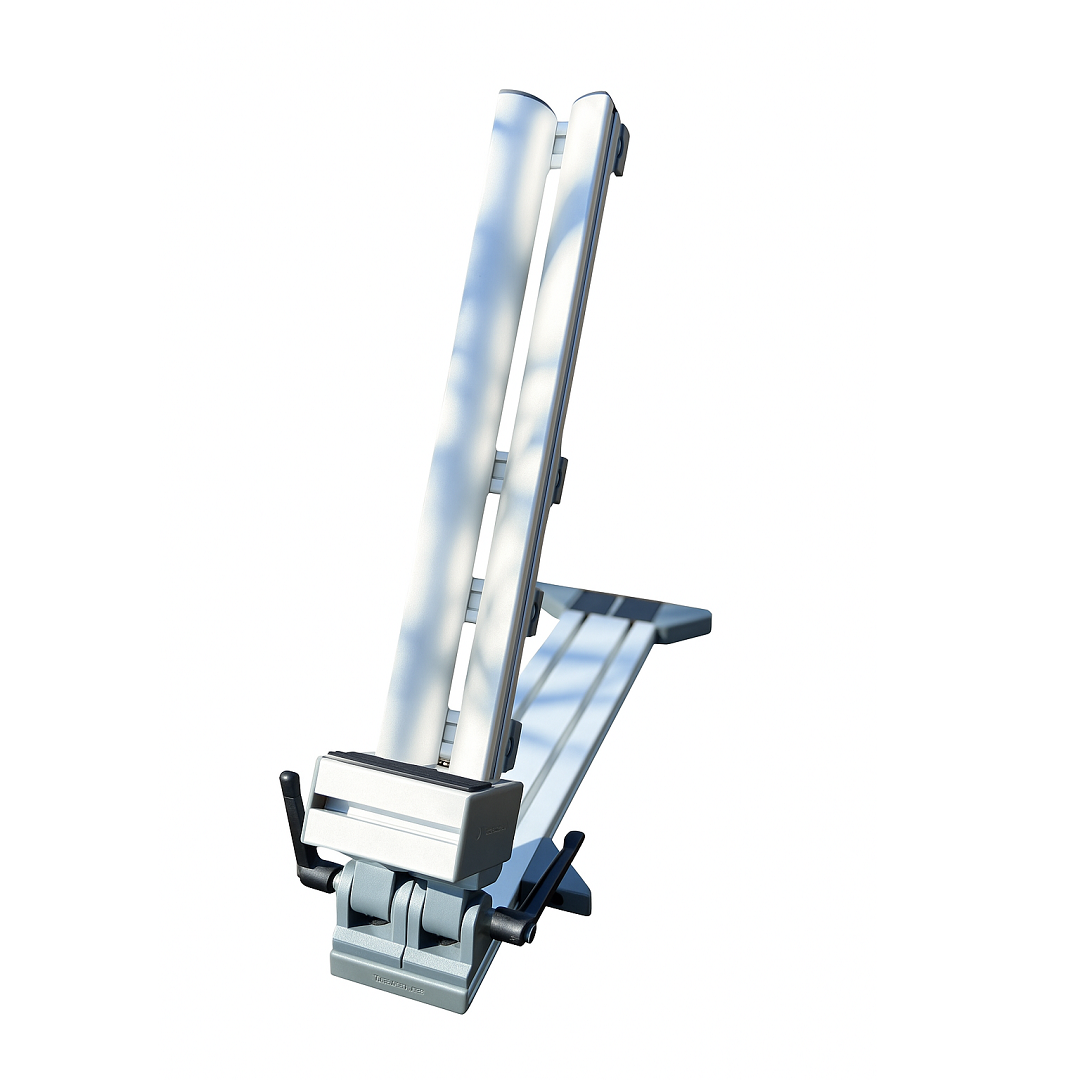

A non-magnetic, portable device designed to securely hold and position drill core for
accurate orientation and dip measurement in the field.
Features:
- Non-magnetic for precise compass readings
- Suitable for BQ to PQ core sizes
- Holds core lengths up to 60 cm
- Adjustable dip angle from 0° to 90°
- Clear, unobstructed core view – no extra support frames
- 2 cm beam gap for easy orientation line alignment

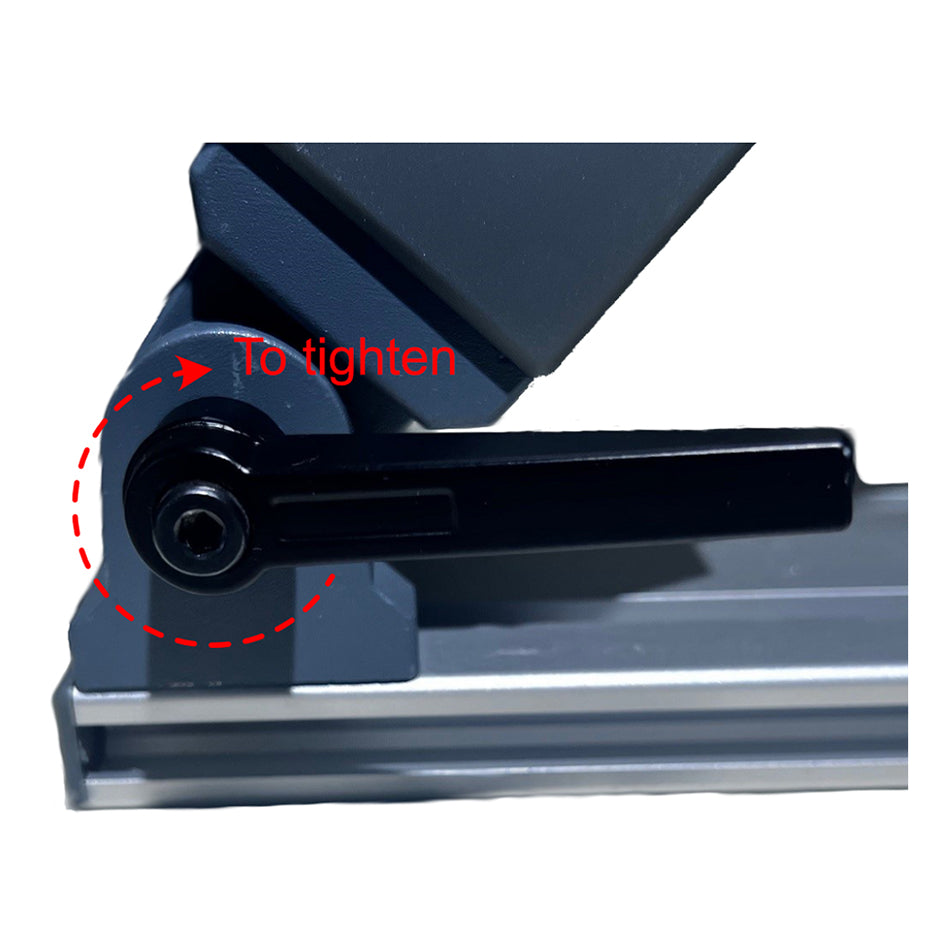

- Heavy-duty lockable hinges (rated to 150 kg)

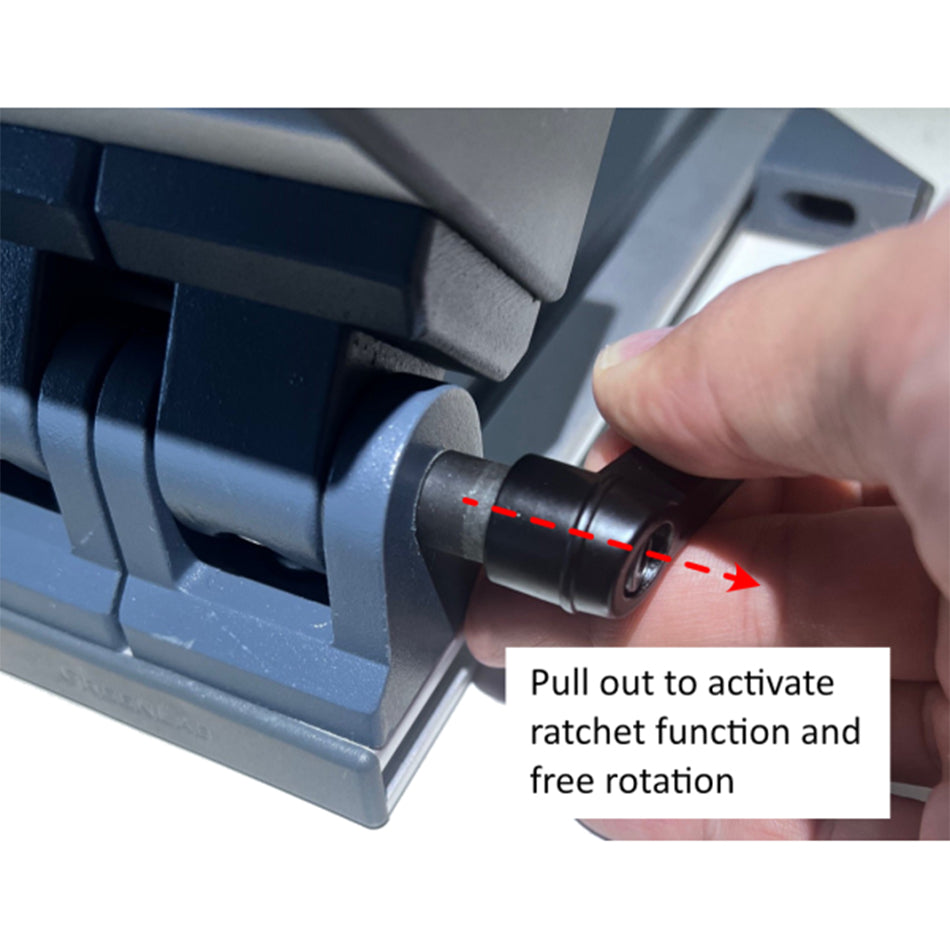

- Ratchet-function levers for quick tightening in confined spaces
- Side wings for added stability
- Lightweight and portable – 2.7 kg
Specifications:
| Description |
Core orientator / rocket launcher |
| Dimensions |
510mm x 180mm |
| Core length |
Up to 60cm |
| Weight |
2.7kg |
| Qty/pack |
Each |
